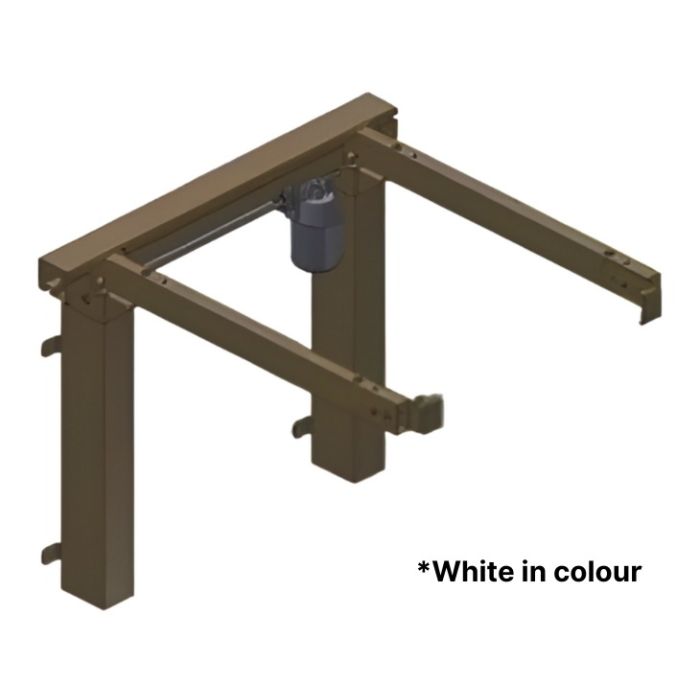

Ropox FlexiElectric Height ADJ Worktop Frame Assembly 500-1040mm (Excludes Safety Stop)

Ropox self assembly FlexiElectric worktop frame with 650 to 950mm vertical height adjustment via a quiet 24V DC electric motor.

A cost effective way of purchasing this system compared to the ready assembled units, they are also ideal if you have limited space to manoeuvre an assembled frame.

• Ideal for single person and/or multiple users of the kitchen where regular adjustment is required
• Ideal for installing an electric hob or kitchen sink (requires flexible plumbing kit)
• Standard RAL 9010, matt white
• 150kg maximum load - evenly distributed
• Electrical adjustment with two low-noise 24V motors / 2.5A / 50 Hz
• For worktops between 500 to *1040mm in width
• Frame vertically height adjustable from 650 - 950mm
• Choice of support arms for worktop depths of 520 - 620 or 600 - 620mm
• Speed - Approx. 12mm / sec
• Lifting time stroke 30mm: Approx. 30 sec.
• Supplied with (Green/Black) colour coded legs - See Page 6 of the installation instructions for more information.
• *Note: The 1x Motor is recommended for use with worktops up to 1040mm in width, after which 2x motors are required

Kit includes:

• 1x Wall Bar Profile (1150mm length) and Spindle (1050mm length)
• 2x Support Legs
• Choice of 2x Support Arms: 520 - 620 or 600 - 620mm
• 1x Motor with 3000mm cable and Control Unit
• 1x Standard Mini Control Switch with Up/Down arrows (Width x Height) 30 x 60mm
• The Standard Mini Control Switch includes 1500mm cable

Available separately:

• Support feet - to be used if the supporting wall is of insufficient strength
• Height adjustable leg covers - for use with or without support feet
• Flexible plumbing kit
• Safety stop strip - highly recommended, prevents crushing or accidental entrapment. Position along the front edge and sides
• FlexiCorner Bracket Set - joins 2x Flexi height adjustable worktop frame assemblies together

Please note:

• The wall bar and spindle will have to be cut to your required length - the profile should be 50mm shorter than worktop length
• Worktop, wall fixings and front fascia for mounting on the support arms are not included
• Safety stop strips are not included - Available in lengths of 1600, 2400mm

Warranty:

• 1 year manufacturer warranty

Alternative product code:

• This product is also known as the: ACK8500
