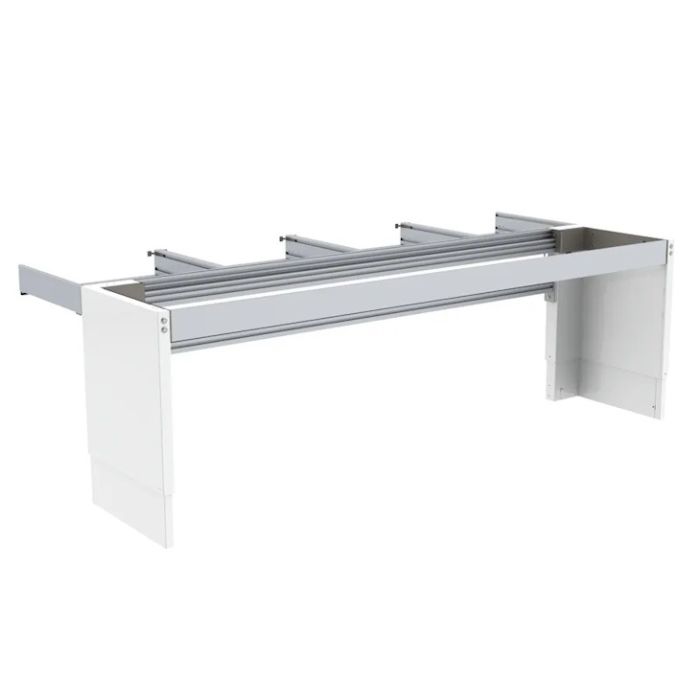

Granberg Height Adjustable Kitchen Island, Centerlift 6490 - White

The Granberg Centerlift 6490 is an electric rise and fall kitchen island.

Its clever design features two distinct sides - one side where hanging cabinets can be mounted; and another side which allows for legroom and facia fronts/drawers to be mounted.

This version of the Centerlift 6490 comes in white (RAL 9003) finish and is available in widths between 990-3290mm.

Design service available:

• Granberg provide a CAD design service to help you visualise and specify this product, with plan, elevation and 3d drawings. Please contact us to discuss your requirement’s.

Key benefits:

• Height adjustable kitchen island lift
• Electric operation
• Simple "plug and play" electronics and motor system
• One side of the lift allows for the hanging cabinets to be mounted
• The other side of the lift allows for legroom, and can be further embellished with facia fronts and drawers
• Integrated safety stop - prevents the lift's movement in the event of an obstruction
• White RAL 9003 finish

Useful information:

• Worktop width = lift width + thickness of side cover + desired protrusion
• Worktop depth = lift depth (1106mm) + thickness of front cover + desired protrusion
• Cover panels can hide installations under the worktop on the side that allows for legroom

Includes:

• Factory-mounted aluminium system
• Floor-mounted motors
• Mini control buttons
• Safety switch on the side that allows for legroom
• Fittings for worktop and facia fronts

Recommended accessories - see PDF downloads for more information:

• Alu-design buttons
• Cover package
• Cover panel
• Cutlery trays
• Drawers
• Front
• Hanging cabinet
• Hose cover
• Mini cabinet on wheels
• Multi-compartment frame
• Power switch / Power socket
• Protective panel
• Safety lock
• Safety system

Technical details:

• Height adjustment: Motorised, step-less adjustment of 400mm (between 700-1100mm usable height excluding worktop)
• Speed: 20mm / sec.
• Electrical connections: 2x 230V / 50Hz / 10A (5A+5A)
• Lifting force (kg): 400
• IP-class: IP 20
• Frame depth (mm): 1106
• Facia front height (mm): 103 (order facia separately)
• Cover panel dimensions: Width = width of lift, height 510mm, thickness 12-20mm (order cover panel separately)
• Materials: Motor units in lacquered steel (S235JRG2). Aluminium beams. Aluminium frame for the side that allows for legroom

Warranty:

• 5 year manufacturer warranty
  This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies

Manufacturer product codes:

• 6490HA-099-01, 6490HA-109-01, 6490HA-119-01, 6490HA-129-01, 6490HA-139-01, 6490HA-149-01, 6490HA-159-01, 6490HA-169-01, 6490HA-179-01, 6490HA-189-01, 6490HA-199-01, 6490HA-209-01, 6490HA-219-01, 6490HA-229-01, 6490HA-239-01, 6490HA-249-01, 6490HA-259-01, 6490HA-269-01, 6490HA-279-01, 6490HA-289-01, 6490HA-299-01, 6490HA-309-01, 6490HA-319-01, 6490HA-329-01
