AKW MM3 (91164S) Formerly Contour WF30 Luxe Shower Enclosure, PET Glazing – MAX. A 1500 / B 1000mm

AKW made-to-measure half height shower enclosure.

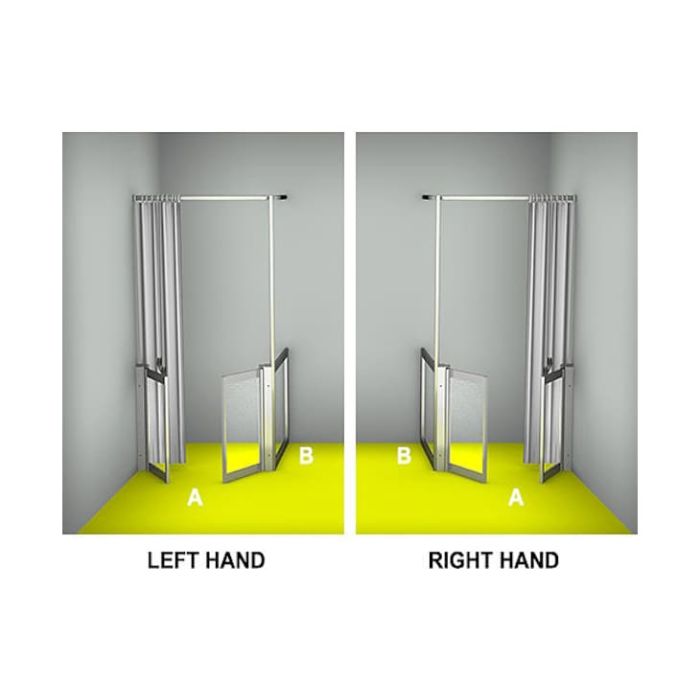

Front access bi-parting doors with a return panel. Vertical support pole/grabrail.

With a modern appearance and a range of features, these doors are ideal for any wet room or shower tray adaptation.

Includes:

• Complete made-to-measure silverdale shower enclosure with PET glazing
• Continuous aluminium curtain rail, powder coated in silverdale finish
• Includes a trimmable 32mm dia. 1880mm high powder coated in silverdale finish support pole with ceiling fixing tube
• Choice of shower curtain

Features and benefits:

• High quality aluminium doors and frames
• High integrity door and glazing seals
• Easy to close magnetic seal doors
• Rise and fall hinges – lifts doors by approx. 5mm for ease of opening
• Easy grip ‘D’ handles, silverdale coloured
• Manufactured in the UK
• Manufactured from aluminium
• Doors and hinges tested to BS EN 14428_2015
• Hinges and top caps manufactured from ABS
• Seals are manufactured from PVC
• Recyclable once disassembled

Glazing:

• PET – 2.3mm thick decorative, translucent high-impact performance plastic
• PET glazing has the same classification of Toughened Glass Class B

Hinge opening:

• Bi-parting doors – 180°C hinge, fold into, and out of, the enclosure

Custom options:

• Choice of height: 750 or 900mm
• Support pole extension to ceiling: Select for a 950mm pole extension kit (trimmable) and supplied with a ceiling fixing shoe

Choice of Shower Curtain (mm):

• Number of curtains dependent on door sizes
• 1800x1400, 1800x1800, 1800x1850, 1800x1900, 1800x2000,1800x2100, 1800x2400, 2315x2315, 2400x1800, 900x2000

Compatibility:

• Compensator included - allows for 14.5mm adjustment for square walls
• Can be retro-fitted in a wet room or onto a shower tray with a minimum 30mm flat perimeter
• 100mm infill panel available to overcome problem pipe work - contact us if required
• If vinyl safety sheet flooring is selected an integrated corner block for 'cap and cove' vinyl flooring is supplied that can be shaped on site to suit

Warranty:

• Lifetime manufacturer warranty

Please note:

• These shower doors are custom made and are non-returnable
• The min. / max. sizes these doors can be manufactured to is:
• Total overall width min. 1020mm / max. 2500mm
• Side A min. 720mm / max. 1500mm
• Side B min. 300mm / max. 1000mm
• Ensure accurate dimensions are taken from tile face to tile face, or to the proposed closed position of the doors
• The manufacturer does not approve the use of power showers with these shower enclosures
• Support pole/grabrail does not include fixings
• Due to the opening nature of these doors a watertight seal cannot be guaranteed
